2 - 144 Core SM G652D GYTA Armoured Underground Fiber Optic Cable

  • 1
  • 2

Brand Name : TTI Fiber

Model Number : GYTA Fiber Optic Cable

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : We accept all online payments

Supply Ability : 10000 pieces

Delivery Time : 5-8 Work Days

Packaging Details : Standard Package(Surport OEM/ODM)

Product Name : GYTA Fiber Optical Cable

Application : Telecommunication

Color : Black

Material : PE

Fiber Type : G652D

Number of Conductors : ≥ 10

Wavelength : 1310nm Or 1550nm

Strength Member : Steel Wire

Use : FTTX

Length : Customizted

Quality Control : 100% Test Before Shipping

Package : Wooden Ram

Certification : ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates

Contact Now

Outdoor 2-144 Core Single-Mode Fiber G652D GYTA Armoured G652D Outdoor Underground Fiber Optic Cable

1. Specification:

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and
fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling
compound to protect it from water ingress, the cable is completed with a PE sheath.

FIber count
2-288
Waterproof layer
Cable core filled with cable gel or water blocking tape, water blocking yarns.
Loose tube
colored fiber in loose tube, jelly-filled
Sheath
Polyethylene (PE)
Central strength member
Steel wire or FRP
Operation temp
-40°~+70°

2. Feature:

* Metallic(non-metallic) strength member;
* Loose tube stranded;
* Gel silling;
* Polyethylene sheath outdoor cable for communication pirpose;

* Transportation Temp: -40℃~+70℃;
* Installation Temp: -5℃~+50℃;
* Operation Temp: -40℃~+70℃
* Permisson bent radius:
* Static: 10D; Dynamic: 20D

3. Application:

  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

 Max Fiber
Per Tube		 Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~30 9.7 76 6 5 1500 600 1000 300
32~48 10.7 90 8 6 1500 600 1000 300
50~72 11.6 110 12 6 2000 600 1000 300
74~96 13.0 135 12 8 2000 600 1000 300
98~144 15.1 190 12 12 2000 600 1000 300

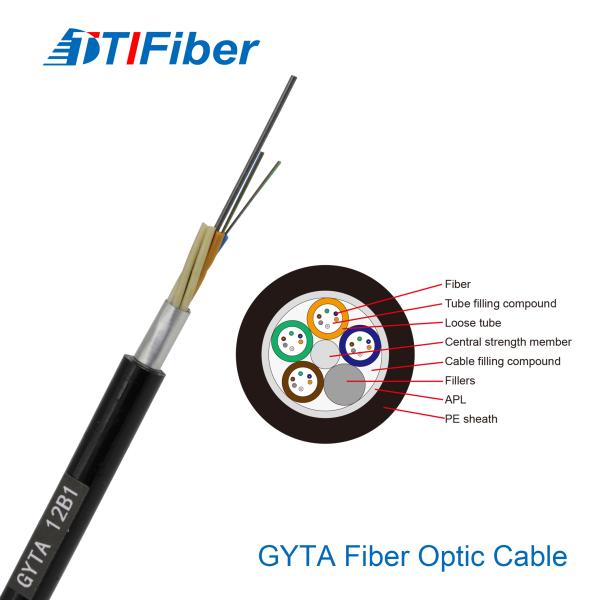

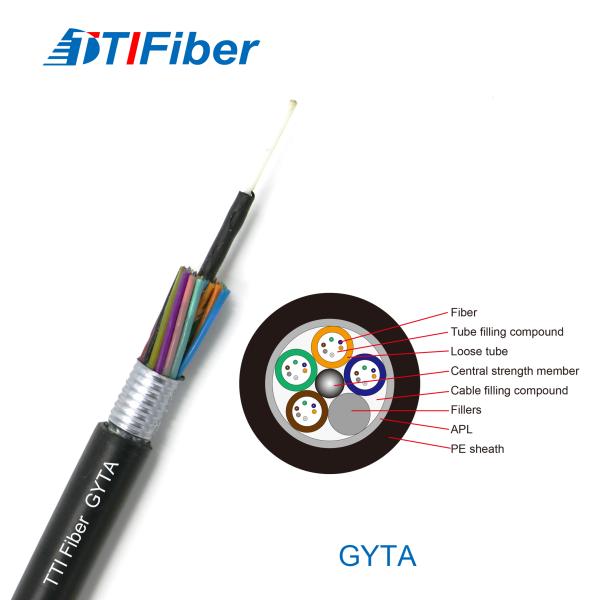

4. Product Picture:

2 - 144 Core SM G652D GYTA Armoured Underground Fiber Optic Cable

2 - 144 Core SM G652D GYTA Armoured Underground Fiber Optic Cable

2 - 144 Core SM G652D GYTA Armoured Underground Fiber Optic Cable

5. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?

We accept all online payments .
